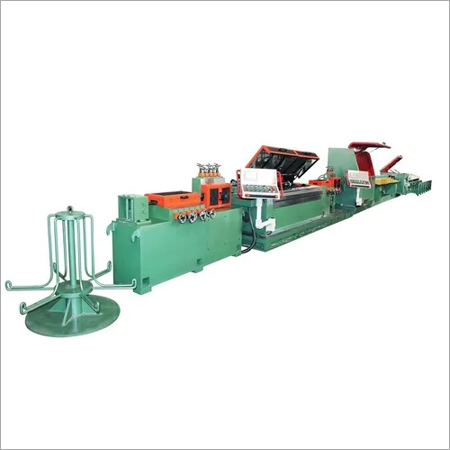

LHJZ-4 Combined Drawing Machine

LHJZ-4 Combined Drawing Machine

Product Details:

  • Product Type Other
  • Technology CNC
  • Power Source Electricity
  • Operating Type Automatic
  • Pressure 6 kgf/cm2
  • Weight (kg) 21 Tonne
  • Usage/Applications Bright Bar Manufacturing
  • Supply Ability : 4 Container Per Month
150000.00 - 500000.00 USD ($)/Set
X

Price And Quantity

  • 150000.00 - 500000.00 USD ($)/Set
  • 1 Container

Product Specifications

  • CNC
  • Electricity
  • Bright Bar Manufacturing
  • 6 kgf/cm2
  • Automatic
  • Other
  • 21 Tonne

Trade Information

  • Qingdao,China
  • Telegraphic Transfer (T/T), Letter of Credit at Sight (Sight L/C)
  • 4 Container Per Month
  • 5 Months
  • ISO, CE

Product Description

LHJZ-4

1. Maximum pulling force: 40kn

2. Rated drawing speed: 5-60 m/min step-less speed regulation

3. Processing materials and diameter:45#Steel Round Material  4mm-12mm

4. Processing length: 2-6m (±5mm)

5. Finished product surface roughness: Ra0.4um- Ra 0.8um

6. Finished product straightness: bars 0.5mm/m

7. Product outer diameter tolerance: ±0.01mm

8. Total unit power: 120 KW

9. Main motor power: 75KW

10. Main power: Three-phase 380V/ 50 HZ

11. Air Pressure: 6kg/cm2 ±1kg/ cm2

12. Approximate total weight of unit: 21T

13. Approximate Dimensions: 23.1M*1.9M*1.3M


Equipment Configuration

  • A1. Control cabinet
  • A2. Pay off rack, initial straightening machine
  • A3. Main drawing machine
  • A4. Fine straightening system
  • A5. Hydraulic shearing machine
  • A6. Guiding rack
  • A7. Polishing unit, collecting device
