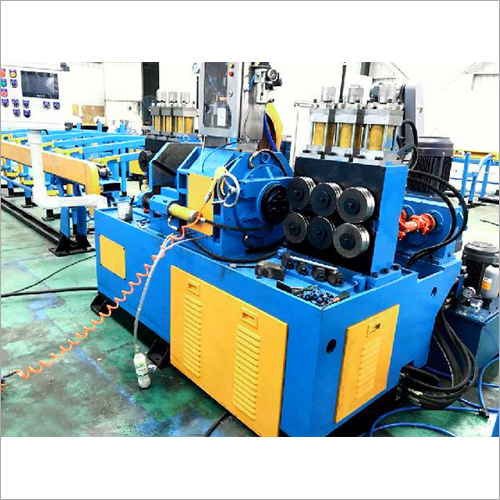

WXC100CA semi-automatic Bar Peeling Machine

WXC100CA semi-automatic Bar Peeling Machine

Product Details:

  • Supply Ability : 1000 Set Per Year
50000 USD ($)/Set
X

Price And Quantity

  • 50000 USD ($)/Set
  • 1 Set

Trade Information

  • Qingdao
  • Paypal, Western Union, Telegraphic Transfer (T/T), Letter of Credit at Sight (Sight L/C), Letter of Credit (L/C), Delivery Point (DP), Days after Acceptance (DA), Cheque, Cash in Advance (CID), Cash Advance (CA), Cash on Delivery (COD), Cash Against Delivery (CAD)
  • 1000 Set Per Year
  • 2 Months
  • seaworthy package
  • Africa, Middle East, Western Europe, South America, Central America, Australia, Asia
  • ISO9001, CE

Product Description

Model

WXC40CA peeling machine

Before peeling

Input diameter(mm)

Φ5.5~Φ42

Length (mm)

≧1400

Tensile strength σb(Mpa)

≤1100

Surface hardness

≤HB320

Curvature(mm/m)

≤1.50

Diameter tolerance

According to GB 702-88 second group

Roundness

≤50% of diameter tolerance

Surface roughness(Ra)

≤25~50mm

After peeling

Output diameter(mm)

Φ5.0~Φ42

Radius cutting depth(mm)

0.2~2

Diameter tolerance

≤IT9(Standard tolerance grade)

Surface roughness(Ra)

≤3.2μm

Roundness(mm)

≤0.03

Feeding speed ( m/min)

1.0~15.0(Slow down for the materials with continuous chips, high strength and hard hardness.)

Rotating speed of cutting head(r/min)

900~2500

Main motor power(kW)

45(4 pole)

Feeding motor power(kW)

4(4 pole)

Carriage motor power(kW)

2.2(sevo moter)

Dimension(m)(for reference)

Main machine 2.4X2.2X1.5

Weight(t)(for reference)

Main machine 4.5

Total capacity(kW)

65

Compressed air supply(prepared by the





user)

0.4~0.8MPa,2m3/min, with secondary oil water separator
